2D Dual Head 100W JPT Mopa Handheld Fiber Laser Rust Removal
Description:
QA-LC100D is a 100W fiber laser cleaning machine for removing oil coating, painting coating, oxide coating, glue and rust.
This type laser rust removal machine has equipped with a dual scanner head, which can output different beam wave.
The laser system was connected with Phone bluetooth, very convenient for parameter settings.
You can make settings on your phone with our APP software. Very convenient to make setting! like laser power and laser beam width.
The laser derusting machine can be customized according to customer special demands.
The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 38kgs.
Product features:
1. App controller, connected with Phone Bluetooth
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;
7. Dual axis laser scanner head
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC60 | QA-LC100D | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 5 M | 5 M | 15M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 10 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 1-5000KHz | 1-4000KHz | 1-3000KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling | Water cooling |
| Dimension | 450*350*500 | 500*400*550 | 900*600*1100 | 900*800*1300 |
| Weight | 30Kg | 40Kg | 120Kg | 300Kg |
| Beam width | 10-110mm | 10-110mm | 10-170mm | 10-1700mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Application scope:
Industries: air plane and ship metal surface derusting , paint removal; building surface dirt cleaning; chip surface cleaning of micro electricy

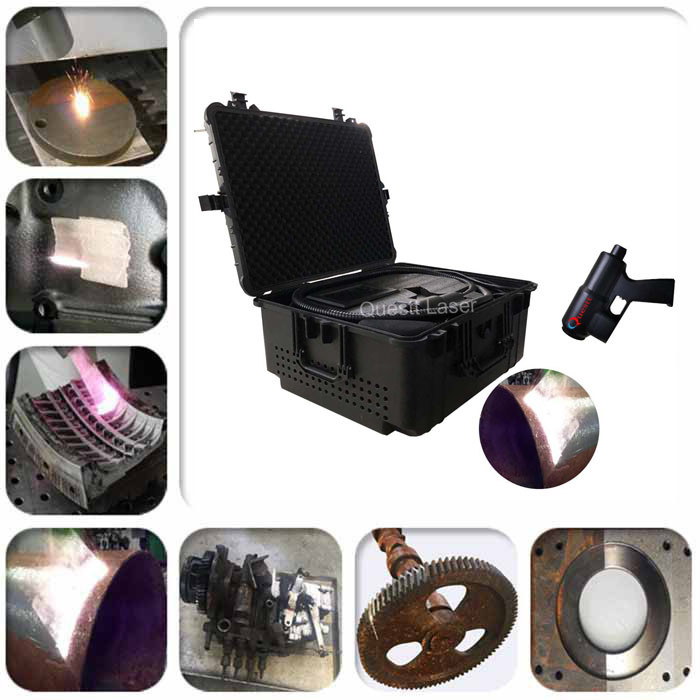

Sample details:
FAQ
1 Q: What is the warranty of the laser cleaning machine ?
A: The warranty is 2 year, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly for all questions .
4 Q: How is the quality of the machine?
A: Germany high technoloy with good quality.
5 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training. Or you can send worker to gain training in our factory directly.
